Sintered Stainless Steel Perforated Sheet With Wire Mesh Laminate

Name: Sintered Stainless Steel Perforated Sheet With Wire Mesh Laminate
Brand: XinLi
Price: 1 USD

Cheap Sintered Stainless Steel Perforated Sheet With Wire Mesh Laminate for sale

Brand Name : XinLi

Model Number : Perforated wire mesh

Certification : ISO9001

Place of Origin : HeNan

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 5000+Picec+per Month

Delivery Time : 20-25 Work Days

Packaging Details : plastic bubble film + wooden box, as the clients requirement

Shape : Round,Sheet,And customized size

Material : Stainless steel woven wire mesh

Feature : High pressure resistance

Filtration Rating : 1-300micron

Technicue : Sinter,Woven, Perforated

Structure : Standard or Customized

working temperature : 300℃

Thickness : customized size

Contact Now

Perforated 304 Stainless Steel Sintered Wire Mesh Filter For Food Industry

Product Introduction:

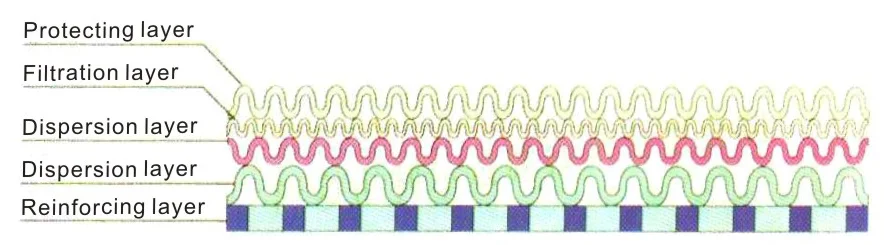

This is a new filter material,which is sintered together with one layer perforated plate(304 or 316L) and several layers of plain or twilled woven wire mesh to form a very strong yet tractable plate.

The layer and mesh number is decided by the working condition and application,the thickness of perforated sheet and the the type of perforations can also be customized.

perforated sintered with wire mesh laminate feature

It enjoys the advantages of higher mechanical strength, better backwash efficiency and lower pressure drop loss,due to the special structure of pressure resistant framework and filtering mesh by sintering together.

Material	304 or 316L Stainless steel wire mesh.But special material can be selected as well (such as Hastelloy, Monel, 904L etc.).
Micrion	From 1um to 300um, optional.
Standard Size	20"x40" 40"x40" 40"x48" Max size is 48"x60" (1 "=25mm)
Thickness	According to the number of mesh layers and the thickness of the perforated sheet
Shape	Plate shape originally, can be cutted to square,round,ring ,oval,and be processed to tube cone and ball etc.
Operating Temperature	-200-650℃
Feature	High strength and rigidity,Uniform and stable precision,Cleanable

Application:

Water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries.

Product image:

Sintered Stainless Steel Perforated Sheet With Wire Mesh Laminate
